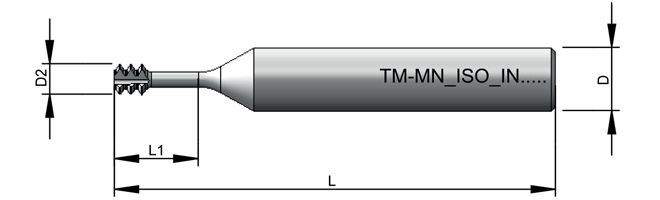

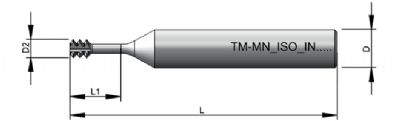

| Ordering Code | Pitch (mm) | Thread | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|
| TM-MN3ISO0.25IN03009L038 | 0.25 | M1.2x0.25 | 3 | 0.90 | 39 | 3.80 | 3 |
Added to cart
|
|
| TM-MN3ISO0.30IN03010L045 | 0.30 | M1.4x0.3 | 3 | 1.00 | 39 | 4.50 | 3 |
Added to cart
|
|
| TM-MN3ISO0.35IN03012L050 | 0.35 | M1.6x0.35 | 3 | 1.20 | 39 | 5.00 | 3 |
Added to cart
|
|
| TM-MN3ISO0.40IN03015L063 | 0.40 | M2x0.4 | 3 | 1.50 | 39 | 6.30 | 3 |
Added to cart
|
|
| TM-MN3ISO0.45IN06019L078 | 0.45 | M2.5x0.45 | 6 | 1.90 | 57 | 7.80 | 3 |
Added to cart
|
|
| TM-MN3ISO0.50IN06024L093 | 0.50 | M3x0.5 | 6 | 2.40 | 57 | 9.30 | 3 |
Added to cart
|
|
| TM-MN3ISO0.70IN06031L123 | 0.70 | M4x0.7 | 6 | 3.10 | 57 | 12.30 | 3 |
Added to cart
|
|
| TM-MN3ISO0.80IN06040L155 | 0.80 | M5x0.8 | 6 | 4.00 | 57 | 15.50 | 3 |
Added to cart
|
|
| TM-MN3ISO1.00IN06047L185 | 1.00 | M6x1 | 6 | 4.70 | 57 | 18.50 | 3 |
Added to cart
|
|
| TM-MN3ISO1.25IN06059L245 | 1.25 | M8x1.25 | 6 | 5.90 | 57 | 24.50 | 3 |
Added to cart
|
|
| TM-MN3ISO1.50IN08079L310 | 1.50 | M10x1.5 | 8 | 7.90 | 63 | 31.00 | 3 |
Added to cart
|
