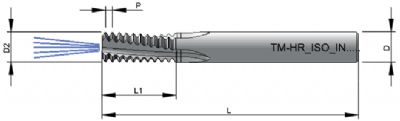

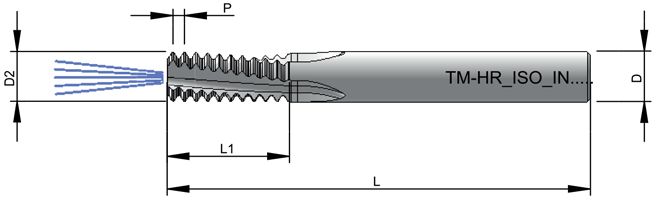

| Ordering Code | Pitch (mm) | Thread | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|
| TM-HR3ISO0.75IN06036L101 | 0.75 | M4.5x0.75 | 6 | 3.60 | 57 | 10.10 | 3 |
Added to cart
|
|
| TM-HR3ISO0.75IN06059L108 | 0.75 | M8x0.75 | 6 | 5.90 | 57 | 10.80 | 3 |
Added to cart
|
|
| TM-HR4ISO0.75IN08079L153 | 0.75 | M10x0.75 | 8 | 7.90 | 63 | 15.30 | 4 |
Added to cart
|
|
| TM-HR3ISO0.80IN06039L100 | 0.80 | M5x0.8 | 6 | 3.90 | 57 | 10.00 | 3 |
Added to cart
|
|
| TM-HR3ISO1.00IN06048L115 | 1.00 | M6x1.0 | 6 | 4.80 | 57 | 11.50 | 3 |
Added to cart
|
|
| TM-HR4ISO1.00IN08079L175 | 1.00 | M10x1.0 | 8 | 7.90 | 63 | 17.50 | 4 |
Added to cart
|
|
| TM-HR4ISO1.00IN10099L205 | 1.00 | M12x1.0 | 10 | 9.90 | 73 | 20.50 | 4 |
Added to cart
|
|
| TM-HR3ISO1.25IN06059L144 | 1.25 | M8x1.25 | 6 | 5.90 | 57 | 14.40 | 3 |
Added to cart
|
|
| TM-HR3ISO1.50IN08079L185 | 1.50 | M10x1.5 | 8 | 7.90 | 63 | 18.50 | 3 |
Added to cart
|
|
| TM-HR4ISO1.50IN10099L218 | 1.50 | M13x1.5 | 10 | 9.90 | 73 | 21.80 | 4 |
Added to cart
|
|
| TM-HR4ISO1.50IN12119L263 | 1.50 | M15x1.5 | 12 | 11.90 | 84 | 26.30 | 4 |
Added to cart
|
|
| TM-HR6ISO1.50IN16159L352 | 1.50 | M20x1.5 | 16 | 15.90 | 105 | 35.20 | 6 |
Added to cart
|
|
| TM-HR3ISO1.75IN08079L218 | 1.75 | M12x1.75 | 8 | 7.90 | 63 | 21.80 | 3 |
Added to cart
|
|
| TM-HR3ISO2.00IN10099L250 | 2.00 | M14x2.0 | 10 | 9.90 | 73 | 25.00 | 3 |
Added to cart
|
|
| TM-HR4ISO2.00IN12119L270 | 2.00 | M16x2.0 | 12 | 11.90 | 84 | 27.00 | 4 |
Added to cart
|
|
| TM-HR5ISO2.00IN16159L370 | 2.00 | M20x2.0 | 16 | 15.90 | 105 | 37.00 | 5 |
Added to cart
|
|
| TM-HR5ISO2.50IN16159L363 | 2.50 | M20x2.5 | 16 | 15.90 | 105 | 36.30 | 5 |
Added to cart
|
|
| TM-HR3ISO3.00IN16159L405 | 3.00 | M24x3.0 | 16 | 15.90 | 105 | 40.50 | 3 |
Added to cart
|
|
| TM-HR4ISO3.00IN20199L435 | 3.00 | M27x3.0 | 20 | 19.90 | 105 | 43.50 | 4 |
Added to cart
|
