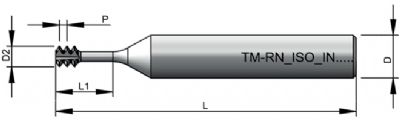

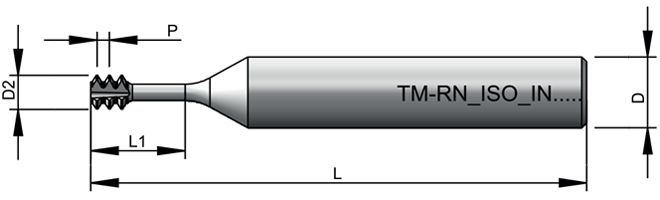

| Ordering Code | Pitch (mm) | Thread | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|
| TM-RN3ISO0.25IN06007L022 | 0.25 | M1.0x0.25 | 6 | 0.70 | 57 | 2.20 | 3 |
Added to cart
|
|
| TM-RN3ISO0.30IN06010L030 | 0.30 | M1.4x0.3 | 6 | 1.00 | 57 | 3.00 | 3 |
Added to cart
|
|
| TM-RN3ISO0.35IN06012L034 | 0.35 | M1.6x0.35 | 6 | 1.20 | 57 | 3.40 | 3 |
Added to cart
|
|
| TM-RN3ISO0.40IN06015L043 | 0.40 | M2x0.4 | 6 | 1.50 | 57 | 4.30 | 3 |
Added to cart
|
|
| TM-RN3ISO0.45IN06016L047 | 0.45 | M2.2x0.45 | 6 | 1.60 | 57 | 4.70 | 3 |
Added to cart
|
|
| TM-RN3ISO0.45IN06019L053 | 0.45 | M2.5x0.45 | 6 | 1.90 | 57 | 5.30 | 3 |
Added to cart
|
|
| TM-RN3ISO0.50IN06024L063 | 0.50 | M3x0.5 | 6 | 2.40 | 57 | 6.30 | 3 |
Added to cart
|
|
| TM-RN3ISO0.60IN06027L073 | 0.60 | M3.5x0.6 | 6 | 2.70 | 57 | 7.30 | 3 |
Added to cart
|
|
| TM-RN3ISO0.70IN06031L083 | 0.70 | M4x0.7 | 6 | 3.10 | 57 | 8.30 | 3 |
Added to cart
|
|
| TM-RN3ISO0.80IN06040L105 | 0.80 | M5x0.8 | 6 | 4.00 | 57 | 10.50 | 3 |
Added to cart
|
|
| TM-RN3ISO1.00IN06047l125 | 1.00 | M6x1 | 6 | 4.70 | 57 | 12.50 | 3 |
Added to cart
|
|
| TM-RN3ISO1.25IN06059L165 | 1.25 | M8x1.25 | 6 | 5.90 | 57 | 16.50 | 3 |
Added to cart
|
