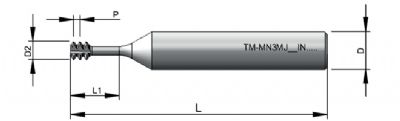

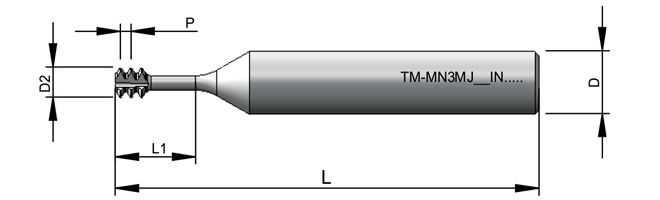

| Ordering Code | Pitch (mm) | Thread | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|
| TM-MN3MJ0.50IN06024L093 | 0.50 | MJ3x0.5 | 6 | 2.40 | 57 | 9.30 | 3 |
Added to cart
|
|
| TM-MN3MJ0.60IN06027L110 | 0.60 | MJ3.5x0.6 | 6 | 2.70 | 57 | 11.00 | 3 |
Added to cart
|
|
| TM-MN3MJ0.70IN06031L123 | 0.70 | MJ4x0.7 | 6 | 3.10 | 57 | 12.30 | 3 |
Added to cart
|
|
| TM-MN3MJ0.80IN06040L155 | 0.80 | MJ5x0.8 | 6 | 4.00 | 57 | 15.50 | 3 |
Added to cart
|
|
| TM-MN3MJ1.00IN06048L185 | 1.00 | MJ6x1.0 | 6 | 4.80 | 57 | 18.50 | 3 |
Added to cart
|
|
| TM-MN3MJ1.25IN06059L245 | 1.25 | MJ8x1.25 | 6 | 5.90 | 57 | 24.50 | 3 |
Added to cart
|
|
| TM-MN3MJ1.50IN08079L310 | 1.50 | MJ10x1.5 | 8 | 7.90 | 63 | 31.00 | 3 |
Added to cart
|
|
| TM-MN3MJ1.75IN10099L370 | 1.75 | MJ12x1.75 | 10 | 9.90 | 73 | 37.00 | 3 |
Added to cart
|
|
| TM-MN3MJ2.00IN10099L425 | 2.00 | MJ14x2 | 10 | 9.90 | 73 | 42.50 | 3 |
Added to cart
|
