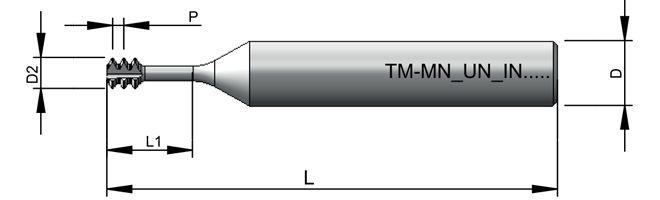

| Ordering Code | Pitch (tpi) | Thread UNC | Thread UNF | Thread UNEF | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TM-MN3UN11IN12115L320 | 11 | 5/8-11 | - | - | 12 | 11.50 | 84 | 32.00 | 3 |
Added to cart
|
|
| TM-MN3UN12IN10099L290 | 12 | 9/16-12 | - | - | 10 | 9.90 | 73 | 29.00 | 3 |
Added to cart
|
|
| TM-MN3UN13IN10093L260 | 13 | 1/2-13 | - | - | 10 | 9.30 | 73 | 26.00 | 3 |
Added to cart
|
|
| TM-MN3UN14IN08079L225 | 14 | 7/16-14 | - | - | 8 | 7.90 | 63 | 22.50 | 3 |
Added to cart
|
|
| TM-MN3UN16IN08069L193 | 16 | 3/8-16 | - | - | 8 | 6.90 | 63 | 19.30 | 3 |
Added to cart
|
|
| TM-MN3UN18IN06059L162 | 18 | 5/16-18 | - | - | 6 | 5.90 | 57 | 16.20 | 3 |
Added to cart
|
|
| TM-MN3UN20IN06048L138 | 20 | 1/4-20 | 7/16-20 | - | 6 | 4.80 | 57 | 13.80 | 3 |
Added to cart
|
|
| TM-MN3UN20IN08079L225 | 20 | - | 7/16-20 | - | 8 | 7.90 | 63 | 22.50 | 3 |
Added to cart
|
|
| TM-MN3UN24IN06035L100 | 24 | 10-24 | - | - | 6 | 3.50 | 57 | 10.00 | 3 |
Added to cart
|
|
| TM-MN3UN24IN08066L162 | 24 | - | 5/16-24 | - | 8 | 6.60 | 63 | 16.20 | 3 |
Added to cart
|
|
| TM-MN3UN28IN06052L130 | 28 | - | 1/4-28 | - | 6 | 5.20 | 57 | 13.00 | 3 |
Added to cart
|
|
| TM-MN3UN32IN06026L073 | 32 | 6-32 | - | - | 6 | 2.60 | 57 | 7.30 | 3 |
Added to cart
|
|
| TM-MN3UN32IN06032L100 | 32 | 8-32 | 10-32 | - | 6 | 3.20 | 57 | 10.00 | 3 |
Added to cart
|
|
| TM-MN3UN32IN06037L100 | 32 | - | 10-32 | - | 6 | 3.70 | 57 | 10.00 | 3 |
Added to cart
|
|
| TM-MN3UN36IN06033L086 | 36 | - | 8-36 | - | 6 | 3.30 | 57 | 8.60 | 3 |
Added to cart
|
|
| TM-MN3UN40IN06021L060 | 40 | 4-40 | - | - | 6 | 2.10 | 57 | 6.00 | 3 |
Added to cart
|
|
| TM-MN3UN40IN06025L067 | 40 | 5-40 | 6-40 | - | 6 | 2.50 | 57 | 6.70 | 3 |
Added to cart
|
|
| TM-MN3UN48IN03019L053 | 48 | 3-48 | 4-48 | - | 3 | 1.90 | 39 | 5.30 | 3 |
Added to cart
|
|
| TM-MN3UN56IN03016L047 | 56 | 2-56 | 3-56 | - | 3 | 1.60 | 39 | 4.70 | 3 |
Added to cart
|
|
| TM-MN3UN64IN03014L040 | 64 | 1-64 | 2-64 | - | 3 | 1.40 | 39 | 4.00 | 3 |
Added to cart
|
|
| TM-MN3UN72IN03014L040 | 72 | - | 1-72 | - | 3 | 1.40 | 39 | 4.00 | 3 |
Added to cart
|
