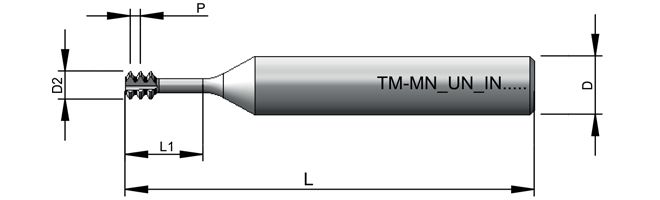

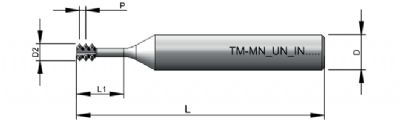

| Ordering Code | Pitch (tpi) | Thread UNC | Thread UNF | Thread UNEF | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TM-MN3UN80IN03012L047 | 80 | - | 0-80 | - | 3 | 1.20 | 39 | 4.70 | 3 |
Added to cart
|
|
| TM-MN3UN72IN03014L060 | 72 | - | 1-72 | - | 3 | 1.40 | 39 | 6.00 | 3 |
Added to cart
|
|
| TM-MN3UN56IN03016L070 | 56 | 2-56 | 3-56 | - | 3 | 1.60 | 39 | 7.00 | 3 |
Added to cart
|
|
| TM-MN3UN40IN06021L088 | 40 | 4-40 | - | - | 6 | 2.10 | 57 | 8.80 | 3 |
Added to cart
|
|
| TM-MN3UN40IN06025L095 | 40 | 5-40 | 6-40 | - | 6 | 2.50 | 57 | 9.50 | 3 |
Added to cart
|
|
| TM-MN3UN32IN06026L108 | 32 | 6-32 | - | - | 6 | 2.60 | 57 | 10.80 | 3 |
Added to cart
|
|
| TM-MN3UN32IN06032L128 | 32 | 8-32 | 10-32 | - | 6 | 3.20 | 57 | 12.80 | 3 |
Added to cart
|
|
| TM-MN3UN32IN06037L148 | 32 | - | 10-32 | - | 6 | 3.70 | 57 | 14.80 | 3 |
Added to cart
|
|
| TM-MN3UN28IN06052L190 | 28 | - | 1/4-28 | - | 6 | 5.20 | 57 | 19.00 | 3 |
Added to cart
|
|
| TM-MN3UN24IN06035L150 | 24 | 10-24 | - | - | 6 | 3.50 | 57 | 15.00 | 3 |
Added to cart
|
|
| TM-MN3UN20IN06048L195 | 20 | 1/4-20 | 7/16-20 | - | 6 | 4.80 | 57 | 19.50 | 3 |
Added to cart
|
|
| TM-MN3UN20IN08079L335 | 20 | - | 7/16-20 | - | 8 | 7.90 | 63 | 33.50 | 3 |
Added to cart
|
|
| TM-MN3UN18IN06059L240 | 18 | 5/16-18 | - | - | 6 | 5.90 | 57 | 24.00 | 3 |
Added to cart
|
|
| TM-MN3UN16IN08069L290 | 16 | 3/8-16 | - | - | 8 | 6.90 | 63 | 29.00 | 3 |
Added to cart
|
|
| TM-MN3UN14IN08079L335 | 14 | 7/16-14 | - | - | 8 | 7.90 | 63 | 33.50 | 3 |
Added to cart
|
