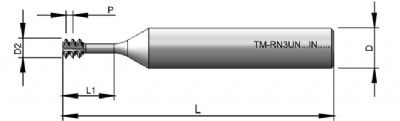

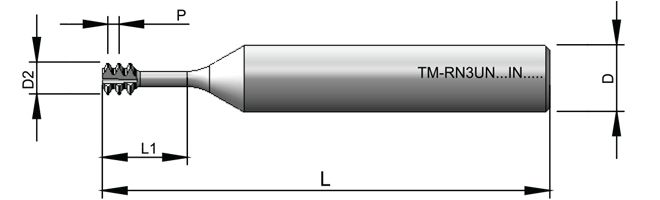

| Ordering Code | Pitch (tpi) | Thread UNC | Thread UNF | Thread UNEF | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TM-RN3UN72IN06014L040 | 72 | - | 1-72 | - | 6 | 1.40 | 57 | 4.00 | 3 |
Added to cart
|
|
| TM-RN3UN64IN06014L040 | 64 | 1-64 | 2-64 | - | 6 | 1.40 | 57 | 4.00 | 3 |
Added to cart
|
|
| TM-RN3UN56IN06016L047 | 56 | 2-56 | 3-56 | - | 6 | 1.60 | 57 | 4.70 | 3 |
Added to cart
|
|
| TM-RN3UN48IN06019L053 | 48 | 3-48 | 4-48 | - | 6 | 1.90 | 57 | 5.30 | 3 |
Added to cart
|
|
| TM-RN3UN40IN06021L060 | 40 | 4-40 | - | - | 6 | 2.10 | 57 | 6.00 | 3 |
Added to cart
|
|
| TM-RN3UN40IN06025L067 | 40 | 5-40 | 6-40 | - | 6 | 2.50 | 57 | 6.70 | 3 |
Added to cart
|
|
| TM-RN3UN36IN06033L086 | 36 | - | 8-36 | - | 6 | 3.30 | 57 | 8.60 | 3 |
Added to cart
|
|
| TM-RN3UN32IN06026L073 | 32 | 6-32 | - | - | 6 | 2.60 | 57 | 7.30 | 3 |
Added to cart
|
|
| TM-RN3UN32IN06032L086 | 32 | 8-32 | 10-32 | - | 6 | 3.20 | 57 | 8.60 | 3 |
Added to cart
|
|
| TM-RN3UN28IN06052L130 | 28 | - | 1/4-28 | - | 6 | 5.20 | 57 | 13.00 | 3 |
Added to cart
|
|
| TM-RN3UN24IN06035L100 | 24 | 10-24 | - | - | 6 | 3.50 | 57 | 10.00 | 3 |
Added to cart
|
|
| TM-RN3UN24IN06059L162 | 24 | - | 5/16-24 | - | 6 | 5.90 | 57 | 16.20 | 3 |
Added to cart
|
|
| TM-RN3UN20IN06048L138 | 20 | 1/4-20 | 7/16-20 | - | 6 | 4.80 | 57 | 13.80 | 3 |
Added to cart
|
