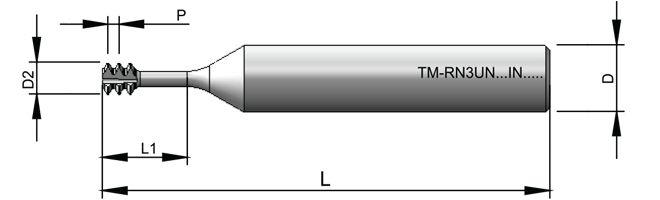

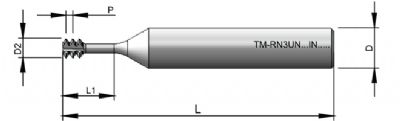

| Ordering Code | Pitch (tpi) | Thread UNC | Thread UNF | Thread UNEF | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TM-RN3UN72IN06014L059 | 72 | - | 1-72 | - | 6 | 1.40 | 57 | 5.90 | 3 |
Added to cart
|
|
| TM-RN3UN56IN06016L068 | 56 | 2-56 | 3-56 | - | 6 | 1.60 | 57 | 6.80 | 3 |
Added to cart
|
|
| TM-RN3UN40IN06025L095 | 40 | 5-40 | 6-40 | - | 6 | 2.50 | 57 | 9.50 | 3 |
Added to cart
|
|
| TM-RN3UN32IN06032L128 | 32 | 8-32 | 10-32 | - | 6 | 3.20 | 57 | 12.80 | 3 |
Added to cart
|
|
| TM-RN3UN24IN06035L148 | 24 | 10-24 | - | - | 6 | 3.50 | 57 | 14.80 | 3 |
Added to cart
|
|
| TM-RN3UN20IN06048L190 | 20 | 1/4-20 | 7/16-20 | - | 6 | 4.80 | 57 | 19.00 | 3 |
Added to cart
|
