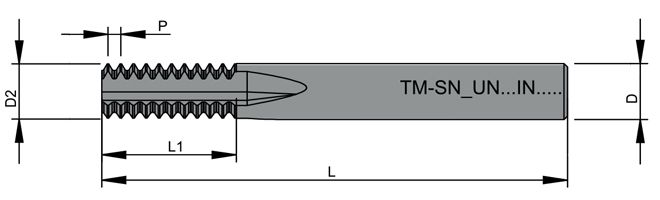

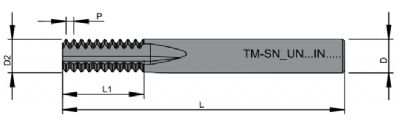

| Ordering Code | Pitch (tpi) | Thread UNC | Thread UNF | Thread UNEF | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TM-SN4UN28IN08079L158 | 28 | - | - | 7/16-1/2 | 8 | 7.90 | 63 | 15.80 | 4 |
Added to cart
|
|
| TM-SN4UN24IN08079L153 | 24 | - | 3/8 | - | 8 | 7.90 | 63 | 15.30 | 4 |
Added to cart
|
|
| TM-SN3UN20IN08079L197 | 20 | - | 7/16 | - | 8 | 7.90 | 63 | 19.70 | 3 |
Added to cart
|
|
| TM-SN4UN20IN10099L225 | 20 | - | 1/2 | - | 10 | 9.90 | 73 | 22.50 | 4 |
Added to cart
|
|
| TM-SN4UN18IN10099L235 | 18 | - | 9/16 | - | 10 | 9.90 | 73 | 23.50 | 4 |
Added to cart
|
|
| TM-SN3UN16IN08068L182 | 16 | 3/8 | - | - | 8 | 6.80 | 63 | 18.20 | 3 |
Added to cart
|
|
| TM-SN4UN16IN12119L262 | 16 | - | 3/4 | - | 12 | 11.90 | 84 | 26.20 | 4 |
Added to cart
|
|
| TM-SN3UN14IN08078L208 | 14 | 7/16 | - | - | 8 | 7.80 | 63 | 20.80 | 3 |
Added to cart
|
|
| TM-SN4UN14IN12119L245 | 14 | - | 7/8 | - | 12 | 11.90 | 84 | 24.50 | 4 |
Added to cart
|
|
| TM-SN3UN13IN10093L244 | 13 | 1/2 | - | - | 10 | 9.30 | 73 | 24.40 | 3 |
Added to cart
|
|
| TM-SN4UN12IN12106L264 | 12 | 9/16 | - | - | 12 | 10.60 | 84 | 26.40 | 4 |
Added to cart
|
|
| TM-SN5UN12IN16159L391 | 12 | - | - | 16 | 15.90 | 105 | 39.10 | 5 |
Added to cart
|
||
| TM-SN3UN11IN12115L311 | 11 | 5/8 | - | - | 12 | 11.50 | 84 | 31.10 | 3 |
Added to cart
|
|
| TM-SN4UN10IN16143L368 | 10 | 3/4 | - | - | 16 | 14.30 | 105 | 36.80 | 4 |
Added to cart
|
|
| TM-SN4UN 9IN16159L409 | 9 | 7/8 | - | - | 16 | 15.90 | 105 | 40.90 | 4 |
Added to cart
|
|
| TM-SN4UN 8IN20197L428 | 8 | - | - | 20 | 19.70 | 105 | 42.80 | 4 |
Added to cart
|
