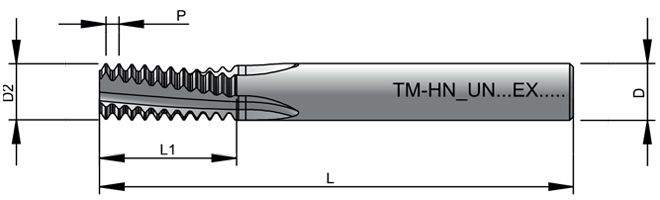

| Ordering Code | Pitch (tpi) | Thread UNC | Thread UNF | Thread UNEF | D | D2 | L | L1 | No. of Flutes | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TM-HN4UN32EX08079L180 | 32 | - | - | 5/16-3/8 | 8 | 7.90 | 63 | 18.00 | 4 |
Added to cart
|
|
| TM-HN4UN28EX08079L158 | 28 | - | 1/4 | 7/16-1/2 | 8 | 7.90 | 63 | 15.80 | 4 |
Added to cart
|
|
| TM-HN4UN24EX10099L227 | 24 | - | 5/16-5/8 | - | 10 | 9.90 | 73 | 22.70 | 4 |
Added to cart
|
|
| TM-HN4UN20EX10099L225 | 20 | 1/4 | 7/16-1/2 | - | 10 | 9.90 | 73 | 22.50 | 4 |
Added to cart
|
|
| TM-HN4UN20EX12119L260 | 20 | - | - | 3/4-1 | 12 | 11.90 | 84 | 26.00 | 4 |
Added to cart
|
|
| TM-HN4UN18EX10099L235 | 18 | 5/16 | 9/16-5/8 | - | 10 | 9.90 | 73 | 23.50 | 4 |
Added to cart
|
|
| TM-HN4UN16EX12119L262 | 16 | 3/8 | 3/4 | - | 12 | 11.90 | 84 | 26.20 | 4 |
Added to cart
|
|
| TM-HN4UN14EX12119L245 | 14 | 7/16 | 7/8 | - | 12 | 11.90 | 84 | 24.50 | 4 |
Added to cart
|
|
| TM-HN3UN13EX10099L244 | 13 | 1/2 | - | - | 10 | 9.90 | 73 | 24.40 | 3 |
Added to cart
|
|
| TM-HN5UN12EX16159L391 | 12 | 9/16 | 1 | - | 16 | 15.90 | 105 | 39.10 | 5 |
Added to cart
|
|
| TM-HN4UN10EX16159L368 | 10 | 3/4 | - | - | 16 | 15.90 | 105 | 36.80 | 4 |
Added to cart
|
